Starling’s Law — also known as the Frank–Starling law of the heart — describes how the heart automatically adjusts its pumping force in response to changes in the volume of blood returning to it.

The law states that:

“Stroke volume (of the heart) increases in response to an increase in the volume of blood (in the ventricles) before contraction (the end-diastolic volume, ‘preload’), when all other factors remain constant.”

In simpler terms:

The more the cardiac muscle (fibre) is stretched during filling (diastole),
The greater the force of contraction during systole,
The more blood can be ejected with each heartbeat,
*Up to a physiological limit.

Mechanism

When more blood returns to the heart → the ventricular walls stretch.
This stretching optimally aligns the actin and myosin filaments in cardiac muscle cells.
The result is a stronger contraction → greater stroke volume (amount of blood pumped out).
Note: Cardiac Output = Heart rate x Stroke Volume

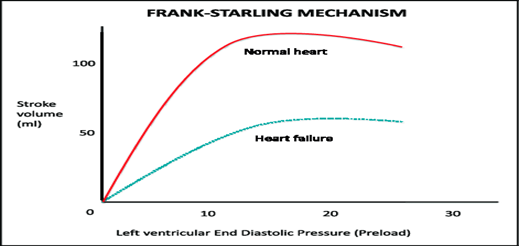

Graphical Representation

The relationship between end-diastolic volume (preload) and stroke volume (and therefore, over time, cardiac output) forms the Frank–Starling curve.
Initially, the curve rises steeply (increased filling → increased output).
Beyond a certain point, excessive stretching reduces efficiency (the curve flattens).



Physiological Importance

Balances output between the two ventricles — prevents blood from pooling in either systemic (left heart) or pulmonary (right heart) circulation.
Adapts cardiac output to venous return — maintains equilibrium (ins and outs) in circulation.
Important in exercise and posture (orthostatic) changes — helps match cardiac output to body needs in healthy individuals.

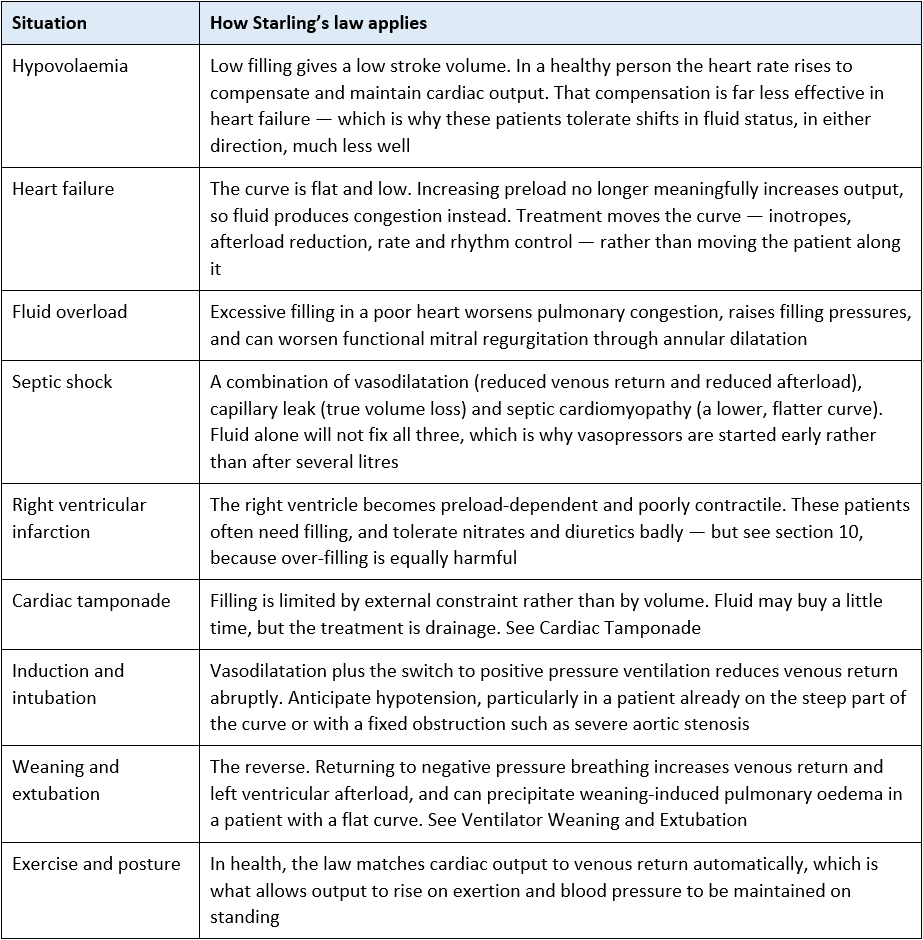

Clinical Relevance (examples)

Heart failure: The curve flattens — thus increasing filling (preload) no longer increases output effectively.
Fluid overload: Excessive filling, in a poor heart, can worsen pulmonary congestion.
Hypovolemia: Low filling causes low stroke volume (in health individuals heart rate increases in an attempt to compensate to try to maintain cardiac output; this compensatory mechanism is less effective in heart failure meaning that patients with heart failure tolerate shifts in fluid status less well than healthy individuals).
